DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine Textile Testing Machine

Name: DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine Textile Testing Machine
Brand: Lonroy
Price: 1 USD

Wholesale DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine Textile Testing Machine from china suppliers

Place of Origin : China

Brand Name : Lonroy

MOQ : 1

Voltage : 220V

Belt grinding speed : 1500mm/min

Test voltage : 24V

Load options : 20g / 50g / 100g / 200g (2 PCS) / 500g / 900g / 1000g

Power : 200VA / 220V / 50Hz

Wire diameter : Less than 15mm

Sanding belt length : 0 - 999999 mm

Belt support corners : 3.5mm

Load support weight : 65g (0.63N ± 0.05N)

Belt-sample angle : 29°

Conductive strip gap : 75mm or 150mm

Conductive strip width : 10mm

Abrasive belt grits : 80#, 150#, 180#, 400#

Protection class : IP56

Power supply : 200VA / 220V / 50Hz

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

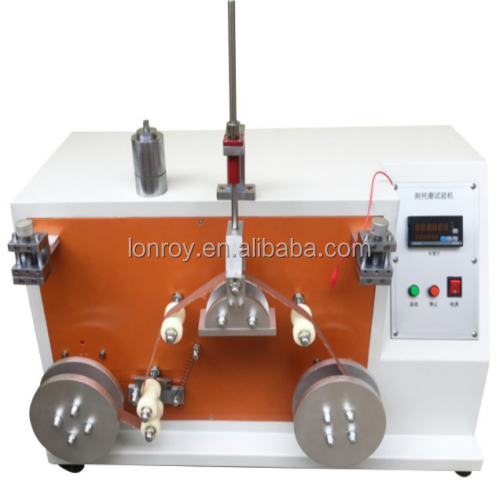

DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine

Wire Wear Resistance Tester

This testing machine evaluates the wear resistance of automotive wire insulation sheaths under controlled conditions, ensuring compliance with international industry standards.

Key Features

Tests wear resistance of automotive wire insulation
Measures abrasion under various load conditions
Adjustable parameters for comprehensive testing
Multiple abrasive belt grit options available
Precise measurement of sanding belt length

Applicable Standards

QC/T730-2005, SAE-J 1128-2005, DIN 72551, ISO6722, JASO D 618

Technical Specifications

Parameter	Specification
Applicable wire diameter	Less than 15mm
Sanding belt length measurement range	0 - 999999 mm
Belt grinding speed	1500mm/min
Rounded corners of the sanding belt support	3.5mm
Test voltage	24V
Load options	20g / 50g / 100g / 200g (2 PCS) / 500g / 900g / 1000g
Weight of the load support	65g (0.63N ± 0.05N)
Angle between abrasive belt and sample	29°
Gap between conductive strips	75mm or 150mm
Width of the conductive strip	10mm
Power	200VA / 220V / 50Hz

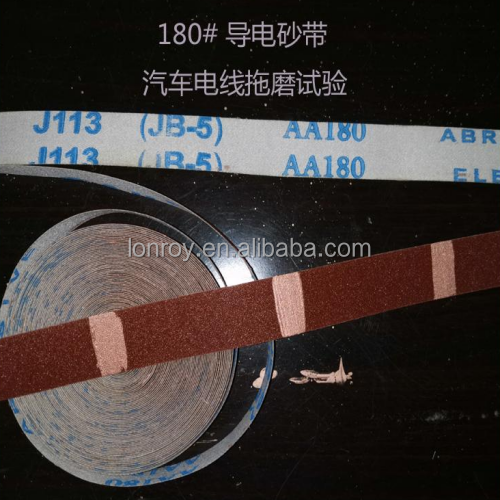

Available abrasive belt grits	80#, 150#, 180# and 400# (selectable)

Product Images

DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine Textile Testing Machine

Product Tags:

DIN 72551 wire wear tester

ISO 6722 belt speed tester

textile testing machine 1500mm/min

DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine Textile Testing Machine Images
